GR Audio Groove 800W Bass Head

The GROOVE series takes up and perfects the philosophy of PURE SOUND, a fundamental characteristic of GR products, with the possibility of adding the characteristic sound only valves can give you.

SPECIFICATIONS
Max Power Out 800 Watt
Preamp Tube Preamp (2 x 12AX7)
PowerAmp Class D
Channels 1
Structure Material Brushed Aluminium
Height 7,2 cm - 2,8" in
Width 34 cm - 13,4" in
Depth 26 cm - 10,2" in
Weight 3,5 Kg - 7,7 Lbs

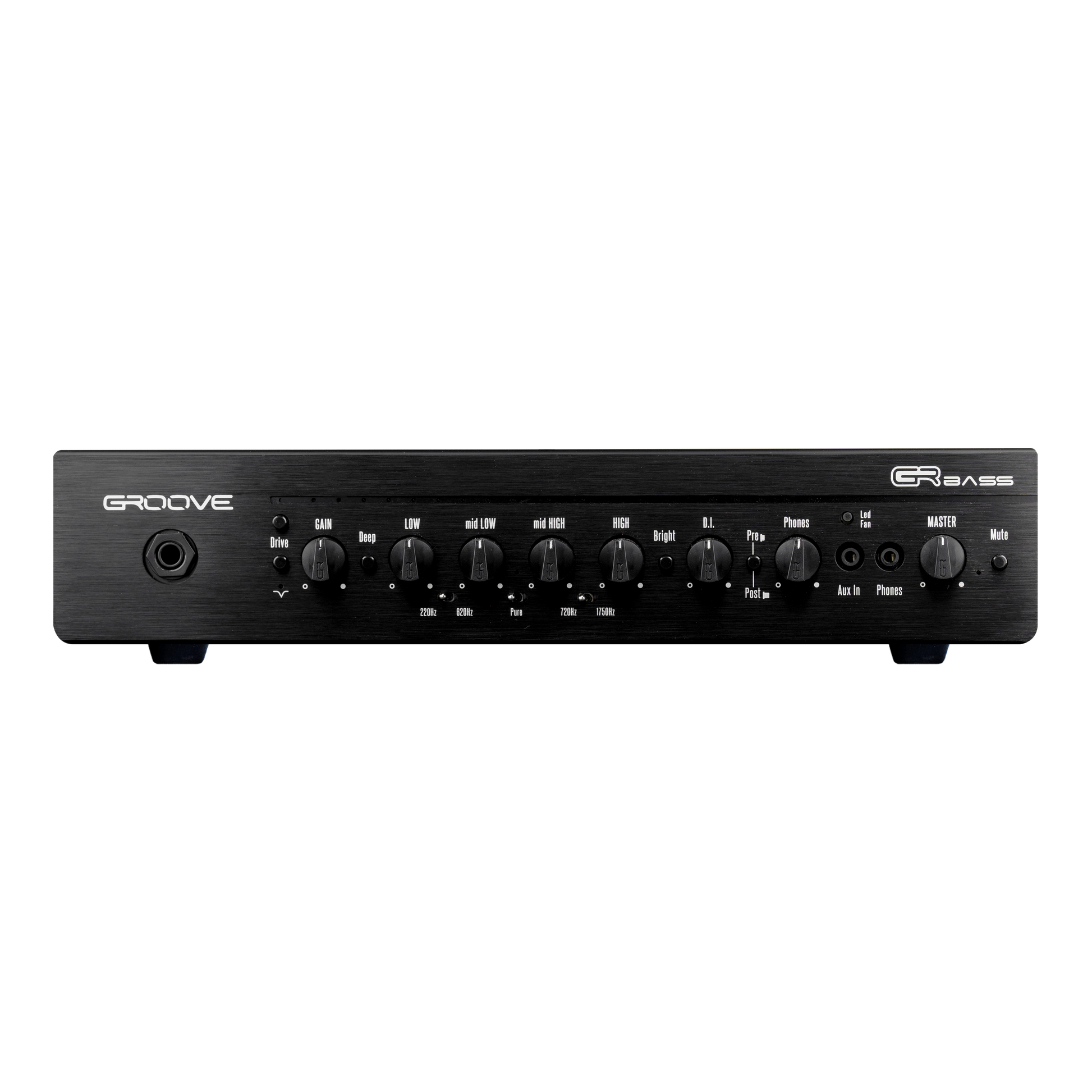

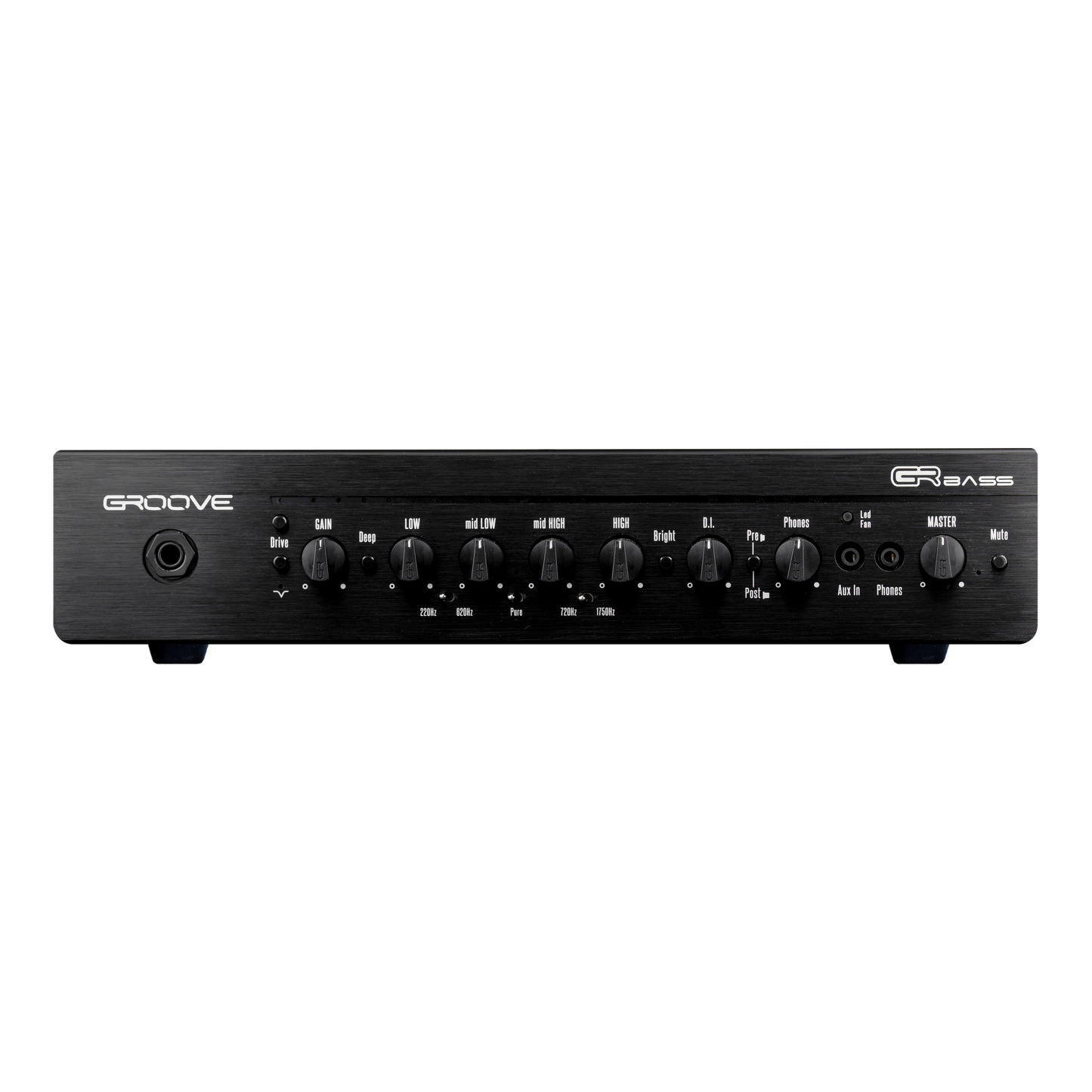

FRONT PANEL
Input
Gain
Drive
Tone Filter To Activate An Eq. Mid Scooped
Low
Mid Low With Selectable Freq. 220Hz-620Hz
Mid High With Selectable Freq. 720Hz-1750Hz
High
Deep To Activate The Deep Filter
Bright To Activate The Bright Filter
Pure To Activate The Pure Function
D.I. Independent Volume
Pre-Post To Select Pre-Post Eq. For D.I.
Phones Volume
Aux-In
Phones Output
Led/Fan Button
Master
Mute Button

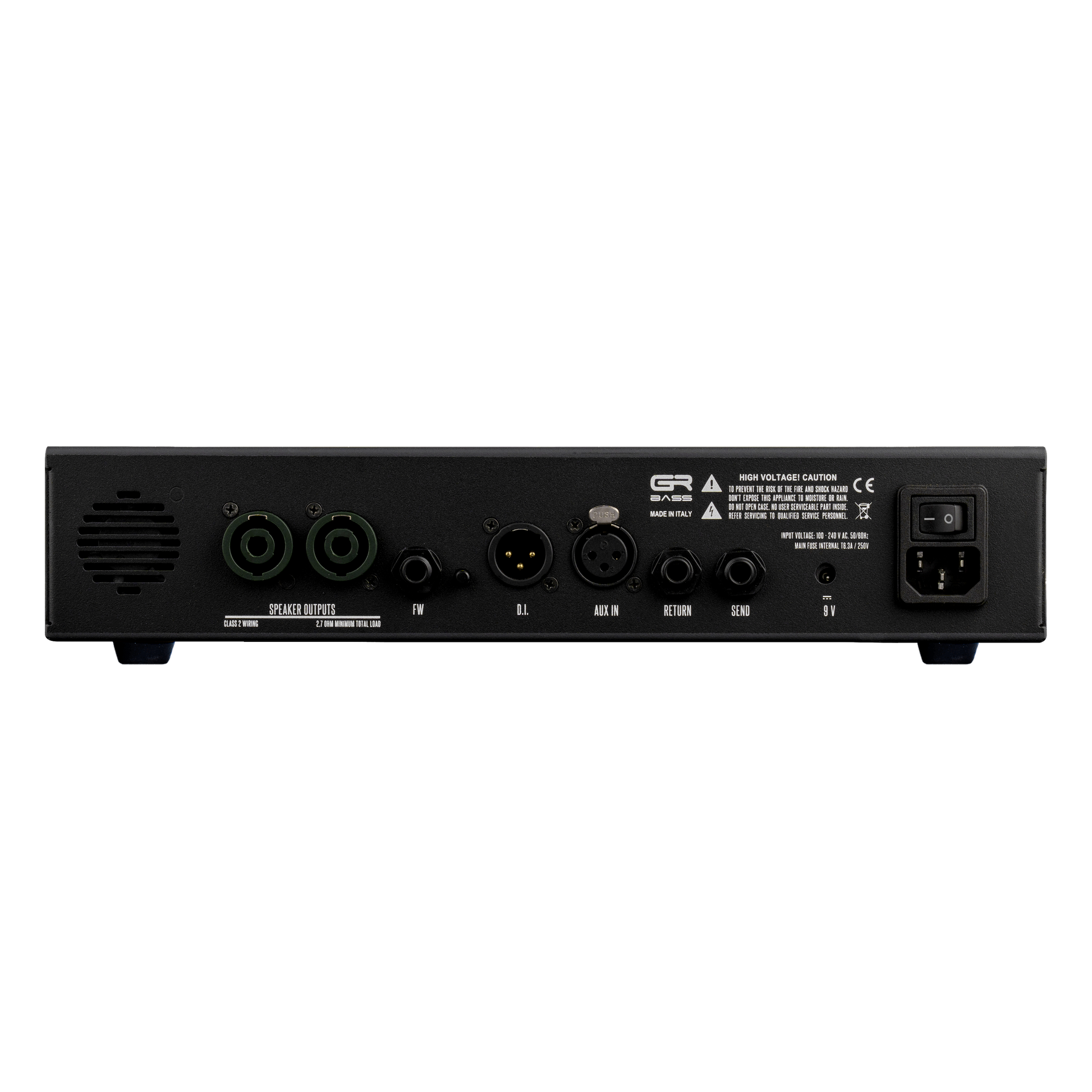

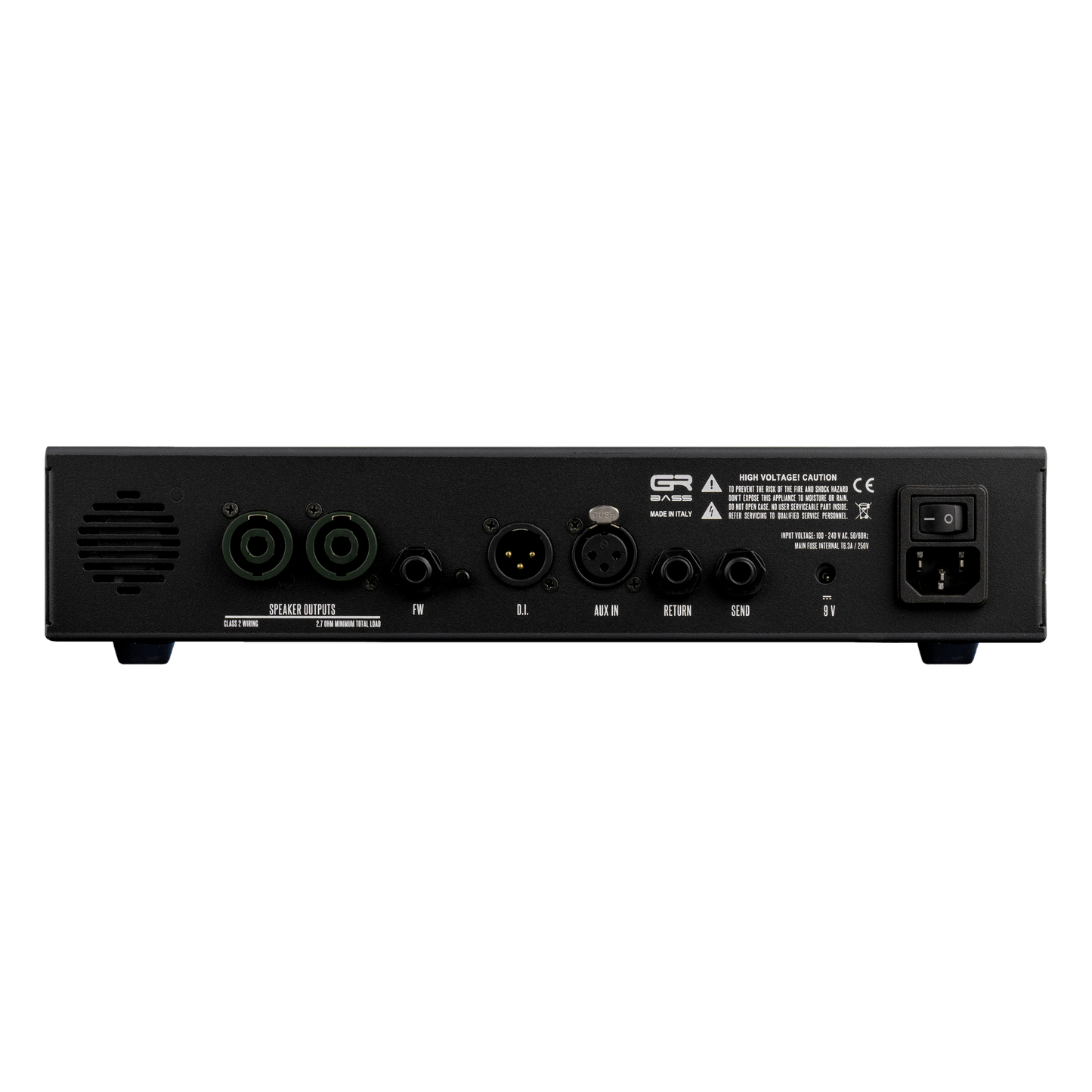

REAR PANEL
Speakers Output 2 Speakon Combo (2.7 ohm min)
Footswitch With Mute and Drive
Gnd-Lift
D.I. With Anti-Bump
Aux-In XLR Dedicated To Phones Output
Send/Return
9V Power Supply Output
